Hettich 9072548 110° Optimat 4 Plus FM Concealed Frame Fix Hinge (Single)
Hettich Optimat 4 Plus FM concealed front fix hinge. Sold individually.
- Suitable for all frame widths
- Quality classification under EN 15570, Level 1
- For door thicknesses from 13 mm

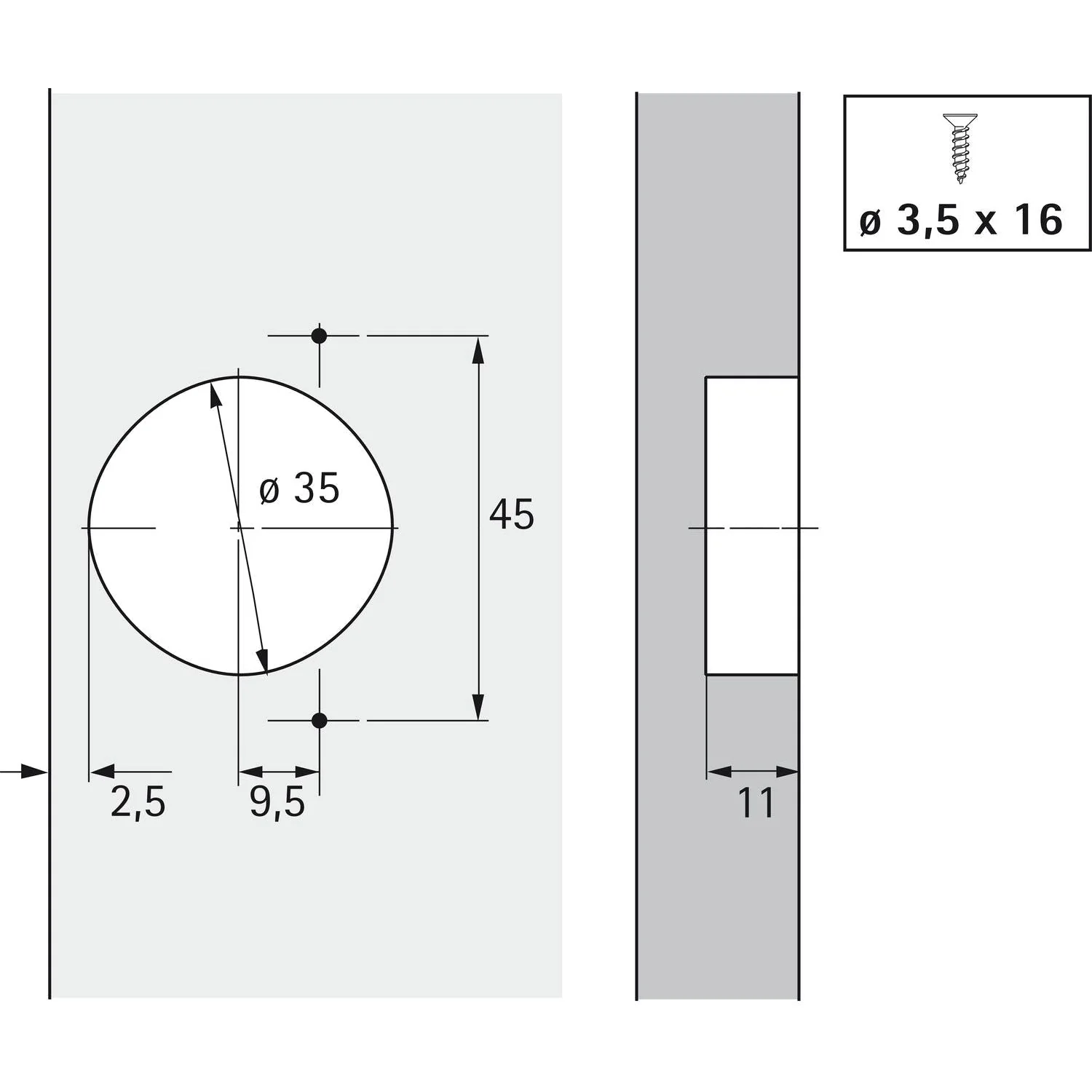

- Cup diameter 35 mm
- Cup depth 11 mm
- With self closing feature

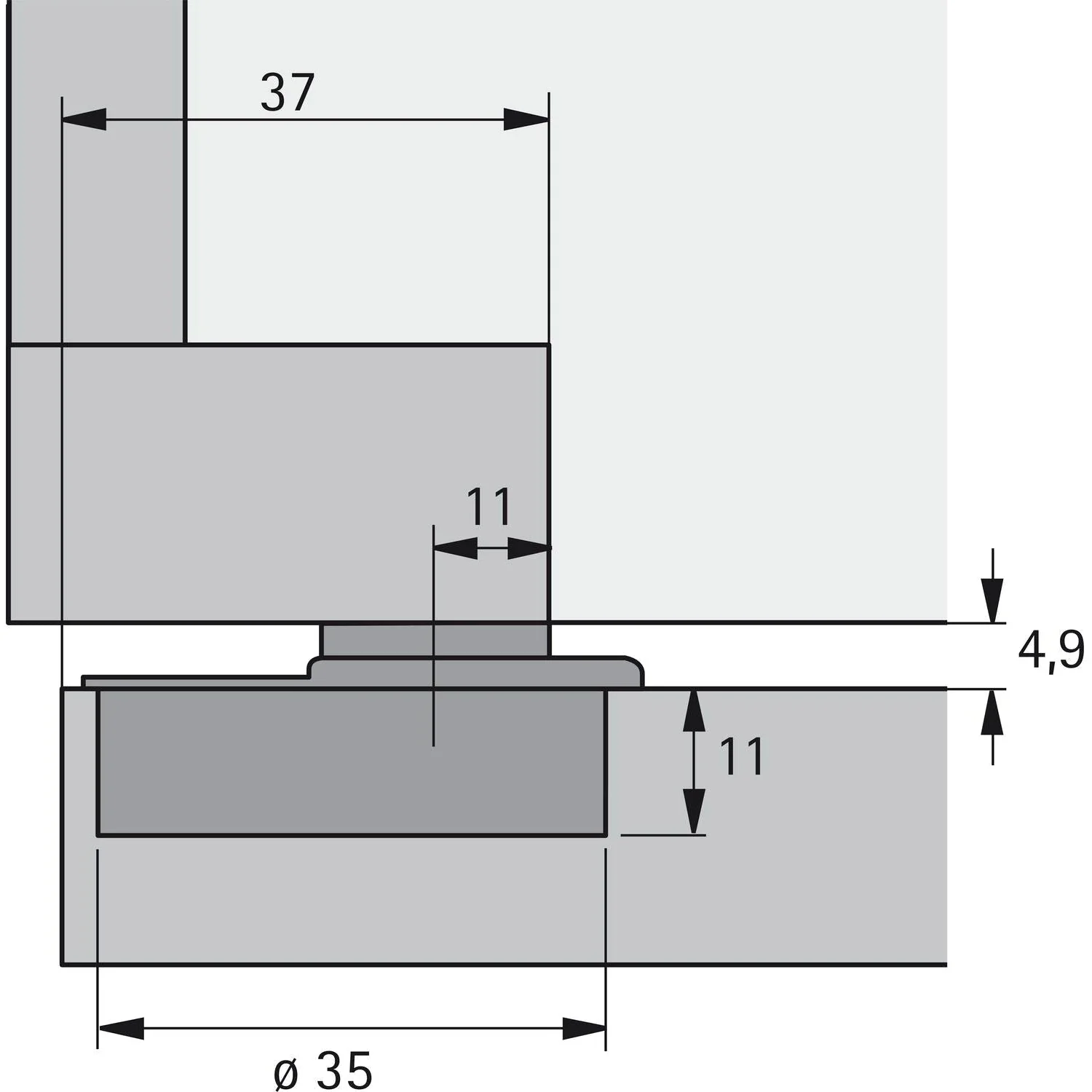

- Door overlay at least 37 mm (hinge arm flush with the edge of the frame)
- Cup distance 2.5 mm
- Overlay adjustment + 1.5 mm / - 1.5 mm
- Height adjustment + 2 mm / - 2 mm
- Steel nickel plated
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Hettich 9072548 110° Optimat 4 Plus FM Concealed Frame Fix Hinge (Single)
Hettich 9072548 110° Optimat 4 Plus FM Concealed Frame Fix Hinge (Single)
Hettich Optimat 4 Plus FM concealed front fix hinge. Sold individually.
- Suitable for all frame widths
- Quality classification under EN 15570, Level 1
- For door thicknesses from 13 mm
- Cup diameter 35 mm
- Cup depth 11 mm
- With self closing feature
- Door overlay at least 37 mm (hinge arm flush with the edge of the frame)
- Cup distance 2.5 mm
- Overlay adjustment + 1.5 mm / - 1.5 mm
- Height adjustment + 2 mm / - 2 mm
- Steel nickel plated
$2.45
Hettich 9072548 110° Optimat 4 Plus FM Concealed Frame Fix Hinge (Single)—
$2.45
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Hettich Optimat 4 Plus FM concealed front fix hinge. Sold individually.
- Suitable for all frame widths
- Quality classification under EN 15570, Level 1
- For door thicknesses from 13 mm
- Cup diameter 35 mm
- Cup depth 11 mm
- With self closing feature
- Door overlay at least 37 mm (hinge arm flush with the edge of the frame)
- Cup distance 2.5 mm
- Overlay adjustment + 1.5 mm / - 1.5 mm
- Height adjustment + 2 mm / - 2 mm
- Steel nickel plated
